5G WWAN for CF-31?

#1 Post by r.wyll »

Any chance there is a 5G WWAN card that will work in a mk5 CF-31?
Top
User avatar
Rob
Toughbooktalk Founder
Posts: 3577
Joined: Mon Mar 16, 2009 8:23 pm
Contact:
Contact Rob

Re: 5G WWAN for CF-31?

#2 Post by Rob »

Zero chance. New modern Toughbooks will have EM9190's with 5G MM wave though! :) Check FZ-G2AKFBHAM as an example:

Win10 Pro, Intel Core i5-10310U 1.7GHz (4.4Ghz), vPro, 10.1" WUXGA Gloved Multi Touch+Digitizer, 16GB, 512GB OPAL SSD (quick-release), Intel Wi-Fi 6, Bluetooth, 5G EM9190 (Sub6+mm), Dual Pass (Ch1:WWAN/Ch2:WWAN-GPS), Infrared Webcam, 8MP Rear Camera, Standard Battery, Bridge Battery, TPM 2.0

Also sub 6GHz "5g" (4G LTE enhanced) with the EM7690 will be available as well but no SKU's out yet that I can legally share ;)

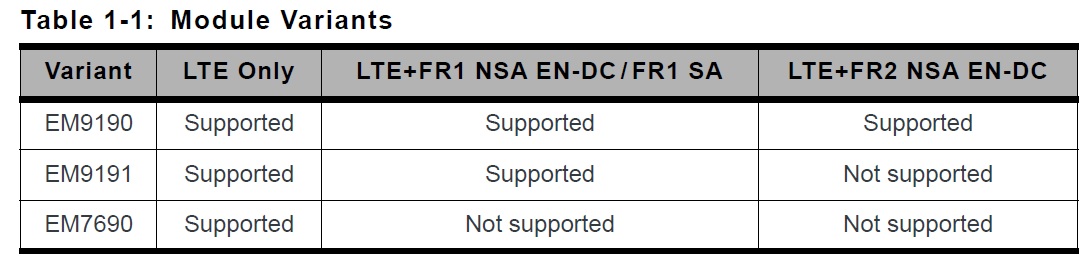

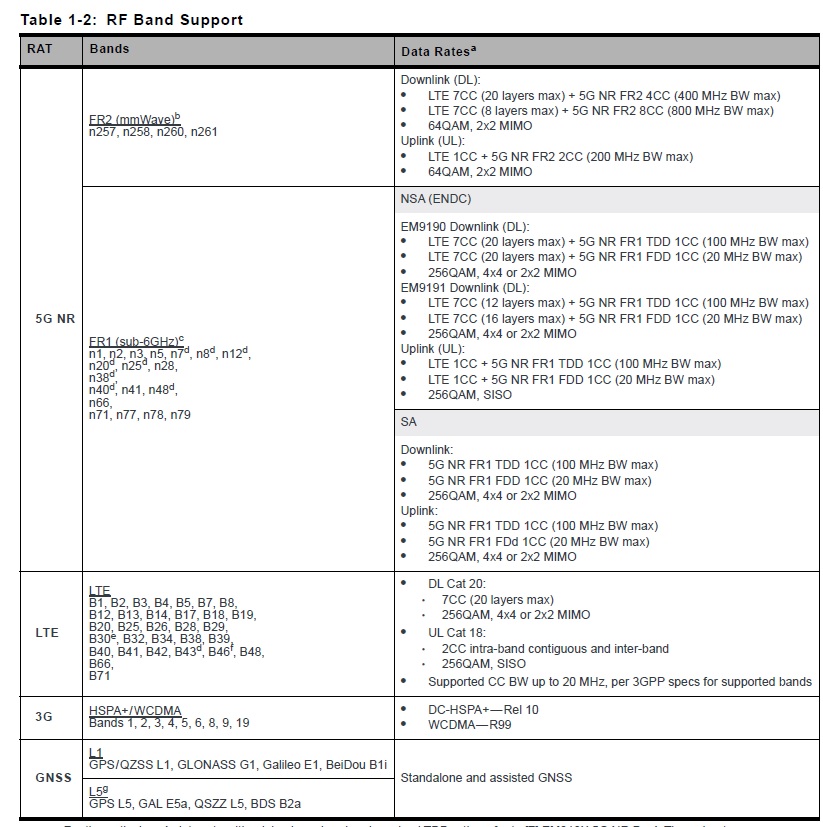

Here are a couple snips from the Sierra PDF I have:
SNIP 1.jpg
SNIP 1.jpg (74.92 KiB) Viewed 12896 times
SNIP 2.jpg
SNIP 2.jpg (185.8 KiB) Viewed 12896 times
~Rob - Vice President - Rugged Depot~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~

http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater

~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
Top
User avatar
r.wyll
Posts: 4
Joined: Sat Jul 26, 2014 10:52 am

Re: 5G WWAN for CF-31?

#3 Post by r.wyll »

So no way to mod either of these units to fit/work in a mk5 cf-31?
Top
User avatar
kode-niner
Posts: 700
Joined: Sat Jun 07, 2014 7:39 am
Location: Canada

Re: 5G WWAN for CF-31?

#4 Post by kode-niner »

Mini PCIE slots that the CF-31 uses cannot accommodate the transfer rates that 5G will need anyway (which to make things worse: the CF-31 WWAN modules used the USB lines). So manufacturers like Sierra have no reason to make any modules for that connector. For laptops that means they'll only make them for the newer M.2 type slots.

You may be able to get a 5G USB 3.0 dongle to plug into the CF-31, but you will still be limited by USB 3.0 speeds.
Daily drives a CF-31
Top
User avatar
r.wyll
Posts: 4
Joined: Sat Jul 26, 2014 10:52 am

Re: 5G WWAN for CF-31?

#5 Post by r.wyll »

Looks like I should start saving for a CF-33!
Top
User avatar
Rob
Toughbooktalk Founder
Posts: 3577
Joined: Mon Mar 16, 2009 8:23 pm
Contact:
Contact Rob

Re: 5G WWAN for CF-31?

#6 Post by Rob »

r.wyll wrote: ↑Wed Apr 13, 2022 7:00 am So no way to mod either of these units to fit/work in a mk5 cf-31?
No because the new units are going to be QUAD RF / PASS THRU, not dual!

Thanks!
~Rob - Vice President - Rugged Depot~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~

http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater

~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
Top
User avatar
Rob
Toughbooktalk Founder
Posts: 3577
Joined: Mon Mar 16, 2009 8:23 pm
Contact:
Contact Rob

Re: 5G WWAN for CF-31?

#7 Post by Rob »

r.wyll wrote: ↑Thu Apr 14, 2022 7:39 am Looks like I should start saving for a CF-33!
Negative on the CF-33.... Just wait... Trust me, something WAY better is coming!! :pbjt: :pbjt: ;) ;) ;)
~Rob - Vice President - Rugged Depot~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~

http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater

~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
Top
User avatar
mklym
Posts: 907
Joined: Fri Feb 22, 2013 3:10 pm
Location: Edmonton, Alberta

Re: 5G WWAN for CF-31?

#8 Post by mklym »

Rob wrote: ↑Mon Apr 18, 2022 11:23 am
r.wyll wrote: ↑Thu Apr 14, 2022 7:39 am Looks like I should start saving for a CF-33!
Negative on the CF-33.... Just wait... Trust me, something WAY better is coming!! :pbjt: :pbjt: ;) ;) ;)
So when will you be able to share more info?
CF-29LTQ,CF-31SBM,CF-52youngGUN,

Life's Journey is not to arrive safely at the grave in a well preserved body, but rather to skid in sideways totally worn-out shouting 'Woo Hoo! What a ride!

Motorsports - the only real sport. If it doesn't have a motor, it is just a game.

There is always something waiting at the end of the road, if you are not willing to see what it is, you probably shouldn't be out there in the first place.
Top
User avatar
Rob
Toughbooktalk Founder
Posts: 3577
Joined: Mon Mar 16, 2009 8:23 pm
Contact:
Contact Rob

Re: 5G WWAN for CF-31?

#9 Post by Rob »

It'll be all over the news on 5/19/22 which is Thursday next week ;)
~Rob - Vice President - Rugged Depot~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~

http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater

~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
Top
Michael AU
Posts: 53
Joined: Sat Feb 05, 2022 6:35 pm

Re: 5G WWAN for CF-31?

#10 Post by Michael AU »

Rob wrote: ↑Fri May 13, 2022 10:38 amIt'll be all over the news on 5/19/22 which is Thursday next week ;)
Maybe an early Christmas then :pbjt:
CF-29 x 3 (Debian (Rugged) 11, FreeDOS 1.2, Windows 7)
CF-30 (Debian 11, Windows 10)
CF-31SBLAX1M (Debian 11, Windows 10)
CF-D1 (Debian 11, Windows 10, trying BlissOS)
Never give up, never surrender!
