CF-29 Dual Passthrough Images

[SHEEPMAN!]

Another web site got too sensitive to allow me time to download these.

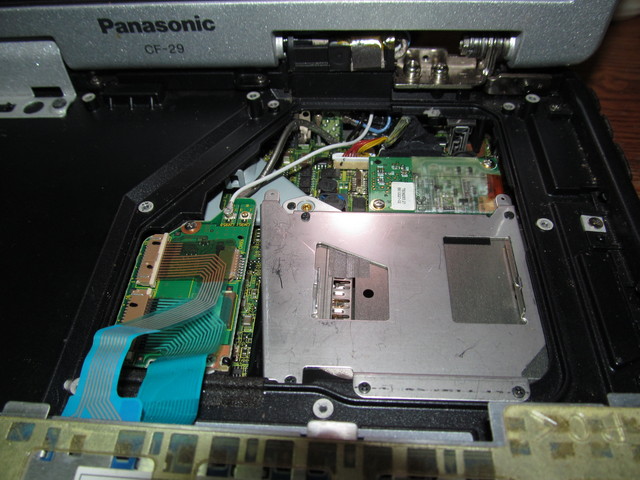

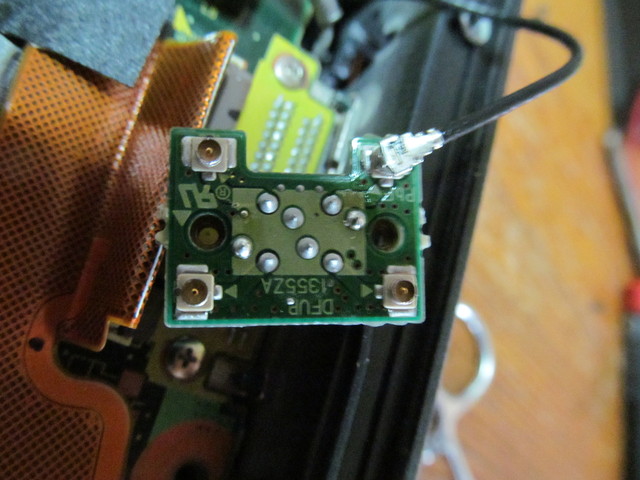

General interest images of dual pass through pcb.

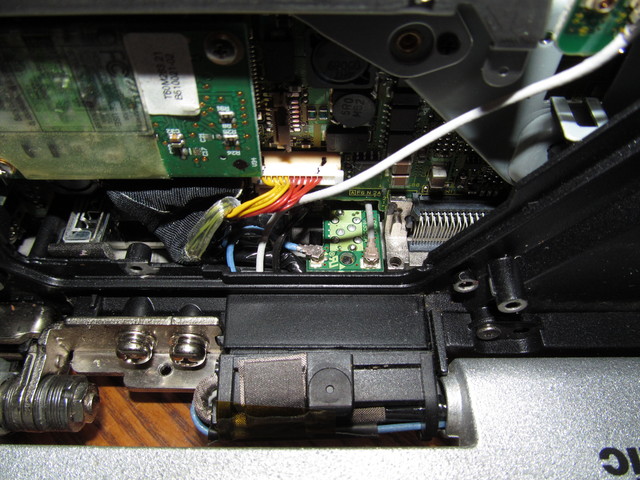

Item of interest is the blue WWAN cable. I see this once in a while from the day they ran out of gray? I guarantee it goes to the WWAN antenna. (Newer units use blue for bluetooth....generally <<<)

FWIW.

Jeff
